understanding electric flanged butterfly valves: functionality and applications
Release time:2025-01-31 05:01:22

    Electric flanged butterfly valves are crucial components in various industrial applications, offering efficient flow control in a compact design. These valves combine the benefits of electric actuation with the simplicity and effectiveness of the butterfly valve design, making them a popular choice for many fluid handling systems.

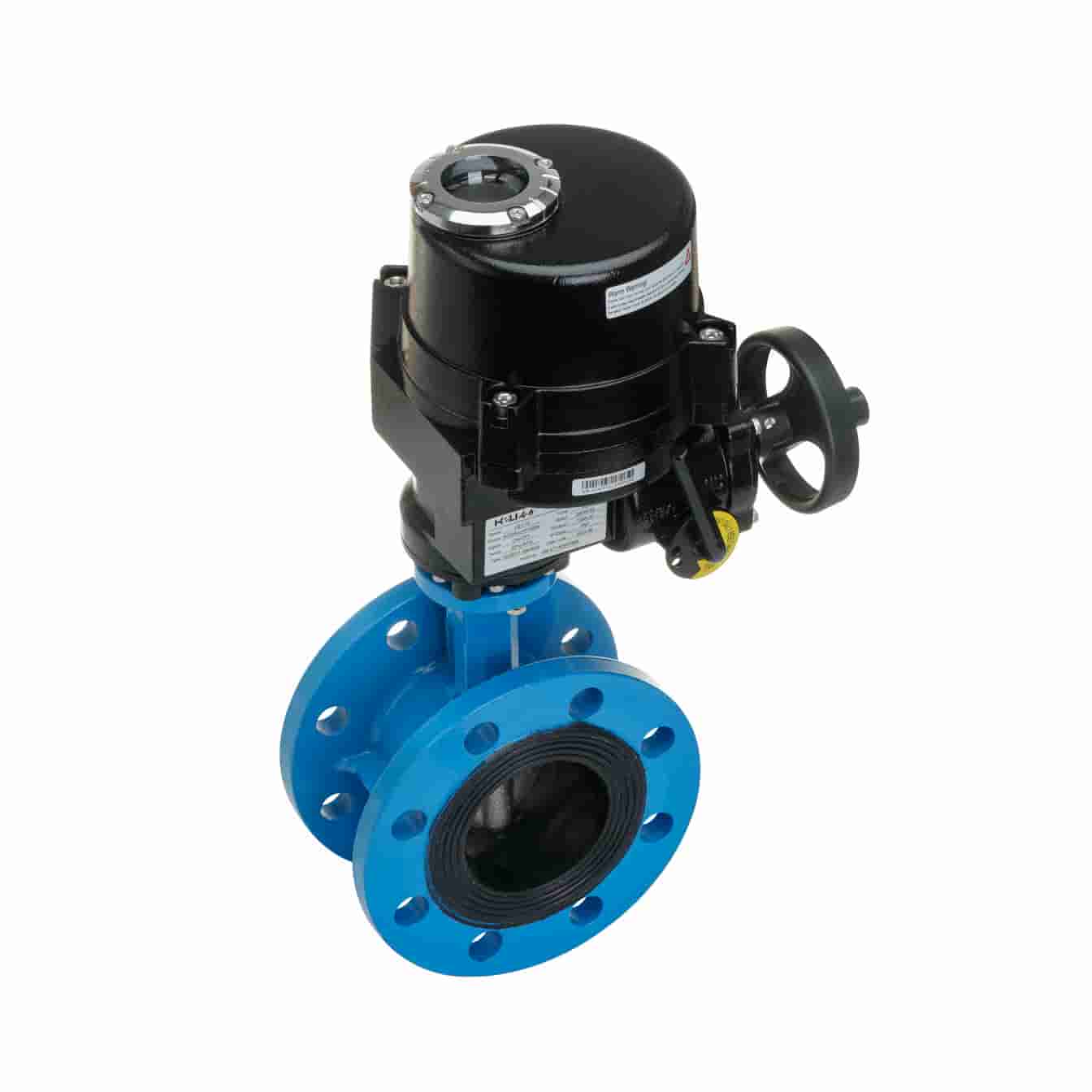

Electric flanged butterfly valve

    At their core, electric flanged butterfly valves consist of a circular disc that rotates within a pipeline to regulate flow. The "flanged" aspect refers to the valve’s connection to the piping system through flanges, which provide a secure and leak-proof attachment. This design is particularly advantageous in systems where space is limited, as butterfly valves are typically more compact than other valve types, such as gate or globe valves.

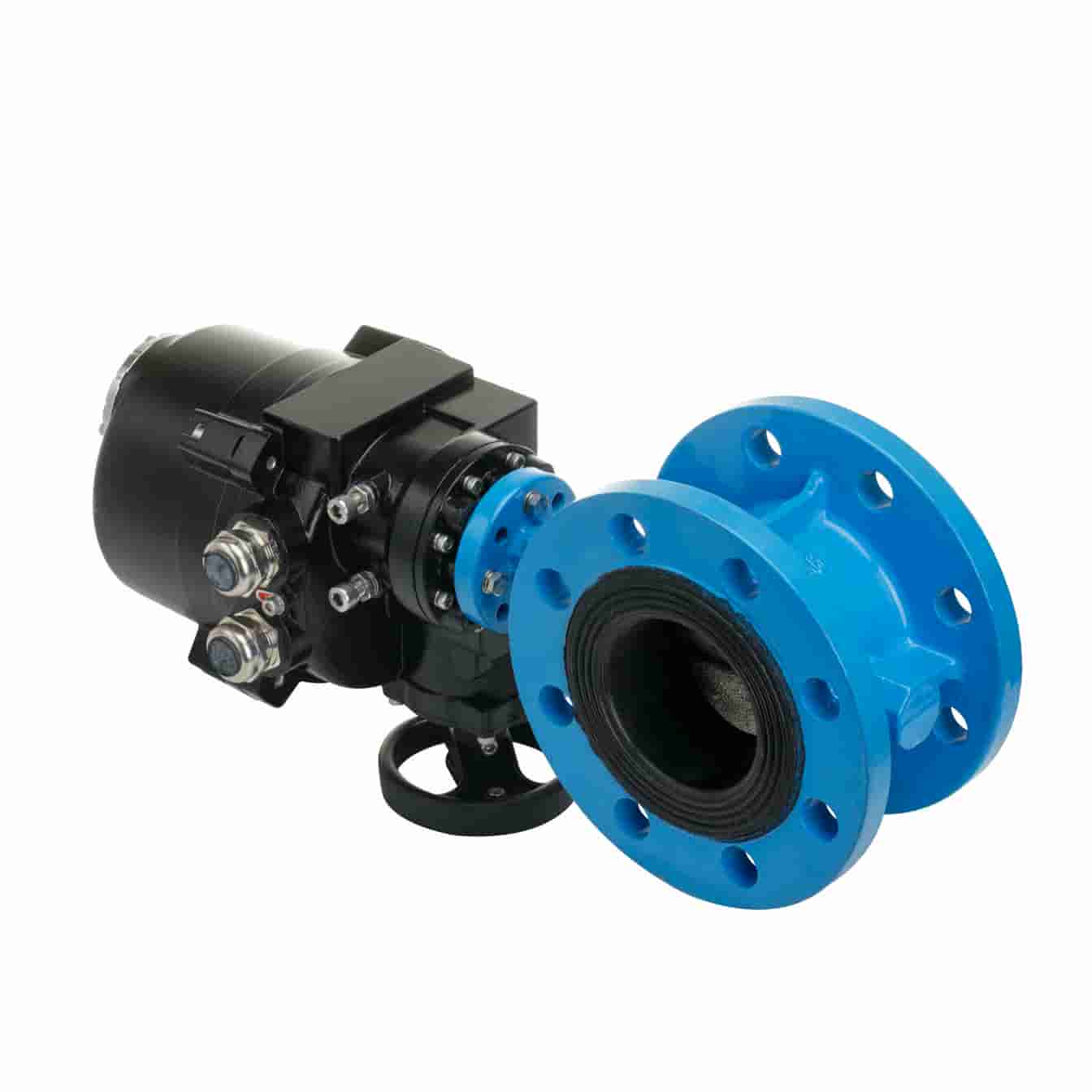

Electric flanged butterfly valve

    The electric actuator integrated into these valves allows for precise and automated control. This feature is essential in applications requiring consistent flow rates and pressure management. Operators can easily adjust the valve position using an electrical signal, enabling remote control and integration with automated systems. This automation not only enhances operational efficiency but also improves safety by minimizing manual intervention in hazardous environments.

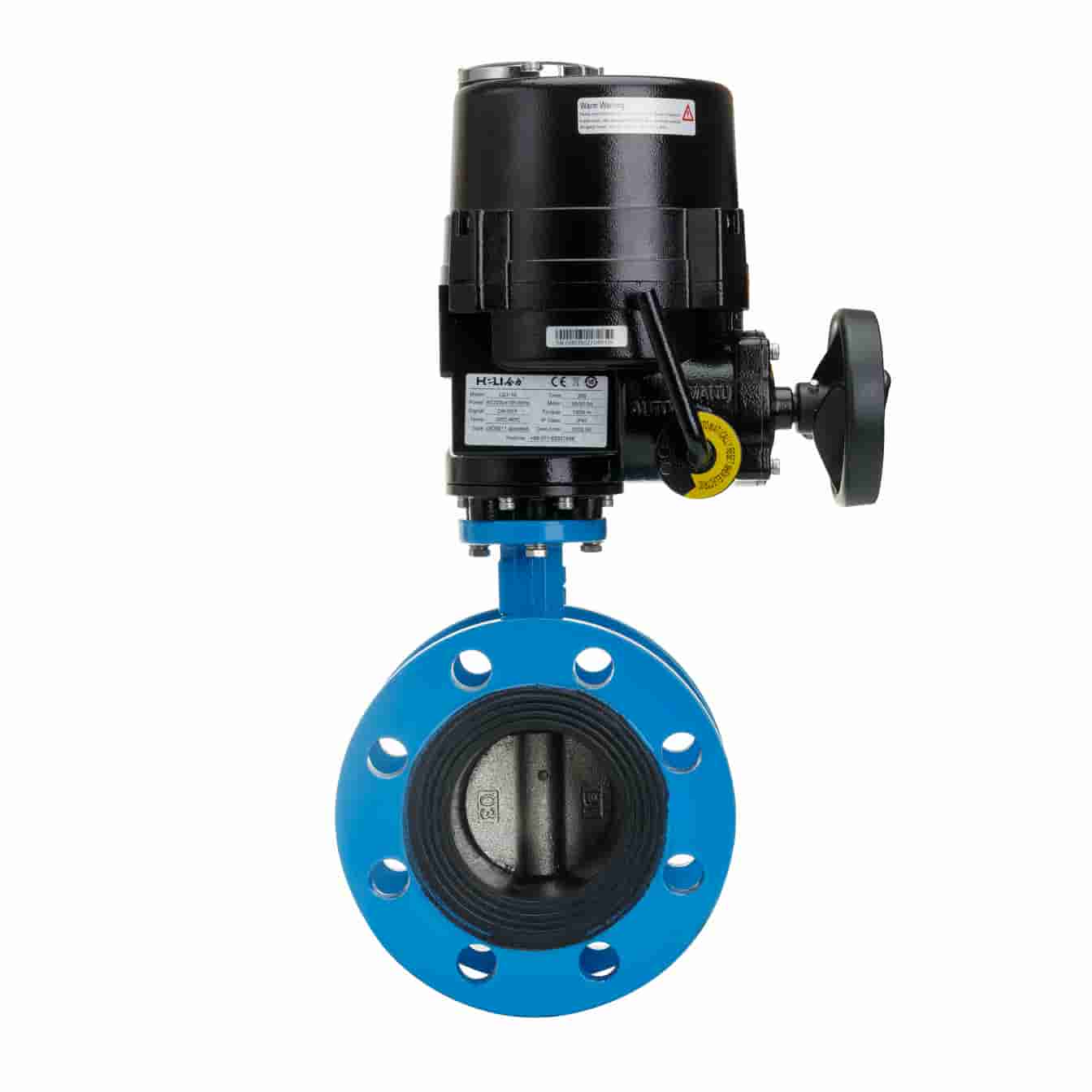

Electric flanged butterfly valve
