HOM electric actuator

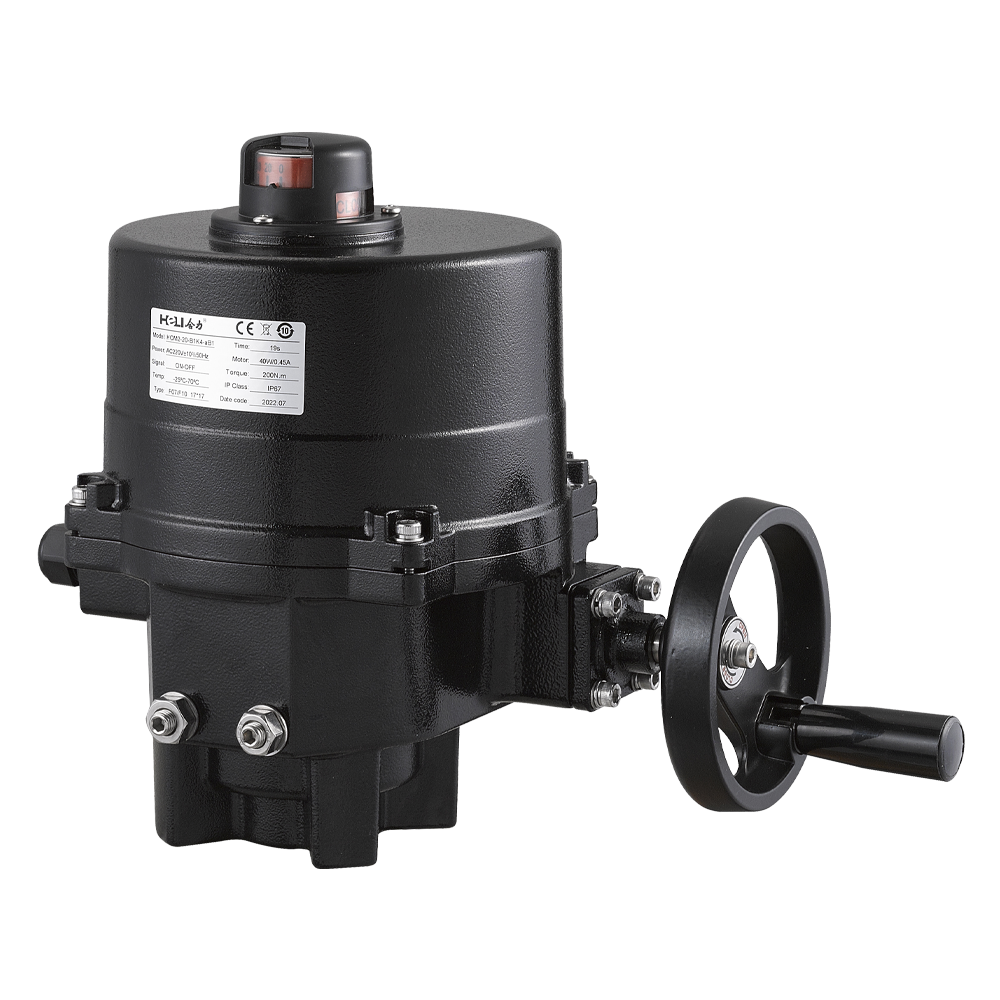

The HOM Series quarter-turn electric actuators adopt planetary gear structure for mechanical transmission, with output torque ranging from 100 N·m to 8000 N·m. The manual operating mechanism features a clutchless design, so manual and electric operations do not interfere with each other, and the handwheel can be rotated even when power is supplied.This series is compatible with butterfly valves, ball valves, plug valves and other valve types, and widely used in pipeline systems of power plants, metallurgical plants, wastewater treatment plants, building automation, urban pipe networks, etc. It boasts high output torque, self-locking capability and a wide range of gear ratios. All connection flanges comply with ISO 5211 standard, and splined shaft couplings are adopted for easy matching with valves of various specifications.

Product specifications and models

Model	Torque (Nm)	Torque （in-lb)	Adapter size （mm）	Adapter depth （mm)	Flange （ISO5211）	Time （sec/90°）	Manual operation	Weight （kg）	Weight （lb）
HOM2-10	100	885	□14,□17	35	F07/F10	25	Handwheel	10	22.0
HOM2-20	200	1770	□14,□17	35	F07/F10	28	Handwheel	10	22.0
HOM2-30	300	2655	□14,□17	35	F07/F10	28	Handwheel	10	22.0
HOM3-40	400	3540	□22,□27	55	F10/F12	21	Handwheel	22	48.5
HOM3-60	600	5310	□22,□27	55	F10/F12	28	Handwheel	22	48.5
HOM3-80	800	7085	□22,□27	55	F10/F12	34	Handwheel	22	48.5
HOM3-100	1000	8855	□22,□27	55	F10/F12 or F14	34	Handwheel	22	48.5
HOM3-130	1300	11510	□22,□27	55	F10/F12 or F14	47	Handwheel	22	48.5
HOM4-170	1700	15050	□27,□36	65	F12/F16orF14	34	Handwheel	36	79.4
HOM4-200	2000	17705	□27,□36	65	F12/F16orF14	34	Handwheel	36	79.4
HOM4-230	2300	20360	□27,□36	65	F12/F16orF14	47	Handwheel	36	79.4
HOM4-250	2500	22130	□27,□36	65	F12/F16orF14	47	Handwheel	36	79.4
HOM4JS-350	3500	3100	□36,□46,□50	130	F16/F25	76	Handwheel	74.5	164.2
HOM4JS-500	5000	44255	□36,□46,□50	130	F16/F25	136	Handwheel	74.5	164.2
HOM4JS-800	8000	70810	□36,□46,□50	130	F16/F25	188	Handwheel	74.5	164.2

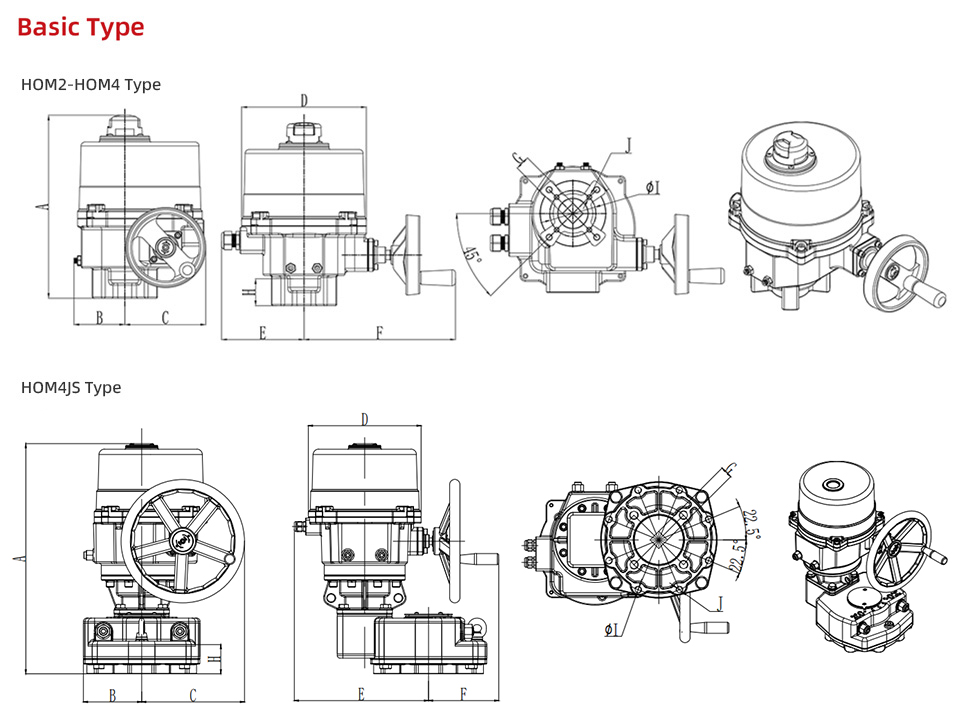

Product Dimension Drawing

Model	A	B	C	D	E	F	G	H	∅I	J	K
HOM2-10	283	78	122	189	125	230	1414 1717	35	70 102	4-M8 4-M10	/
HOM2-20
HOM2-30
HOM3-40	340	105	187	232	153	273	2222 2727	55	102 125 or 140	4-M10 4-M12 or 4-M16	/
HOM3-60
HOM3-80
HOM3-100
HOM3-130
HOM4-170	390	129	241	265	172	314	2727 3636	65	125 165 or 140	4-M12 4-M20 or 4-M16	/
HOM4-200
HOM4-230
HOM4JS-350	537	137	242	265	289	165	3636 4646	130	165 254	4-M20 8-M16	139
HOM4JS-500
HOM4JS-800

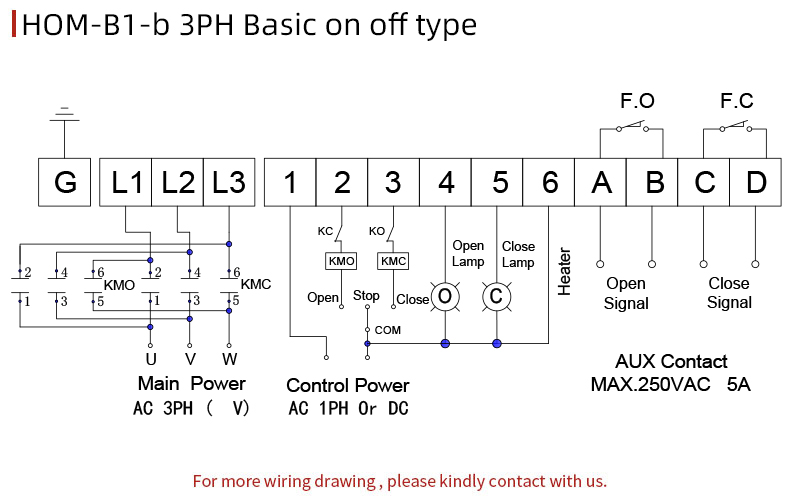

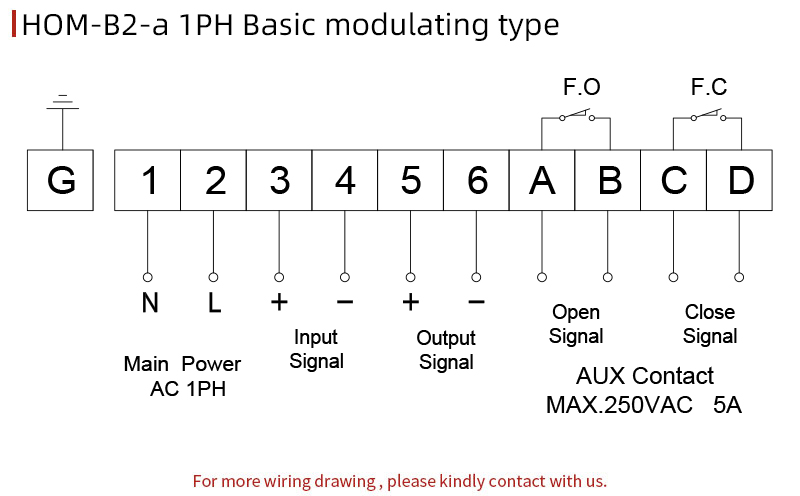

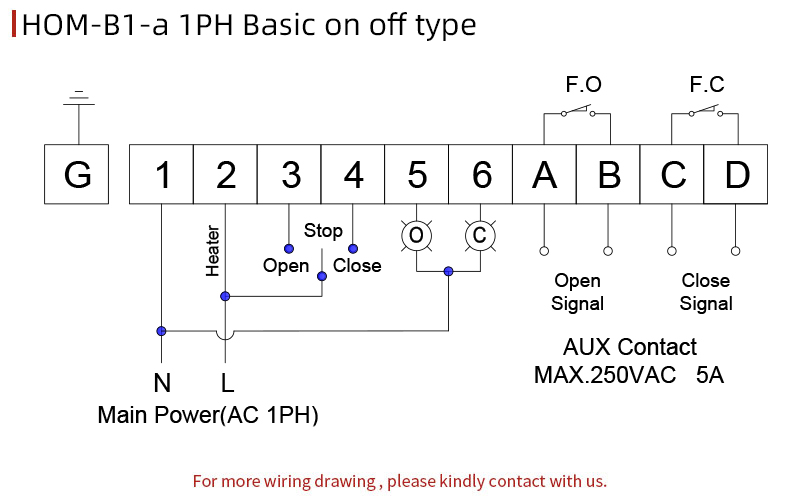

line diagram
