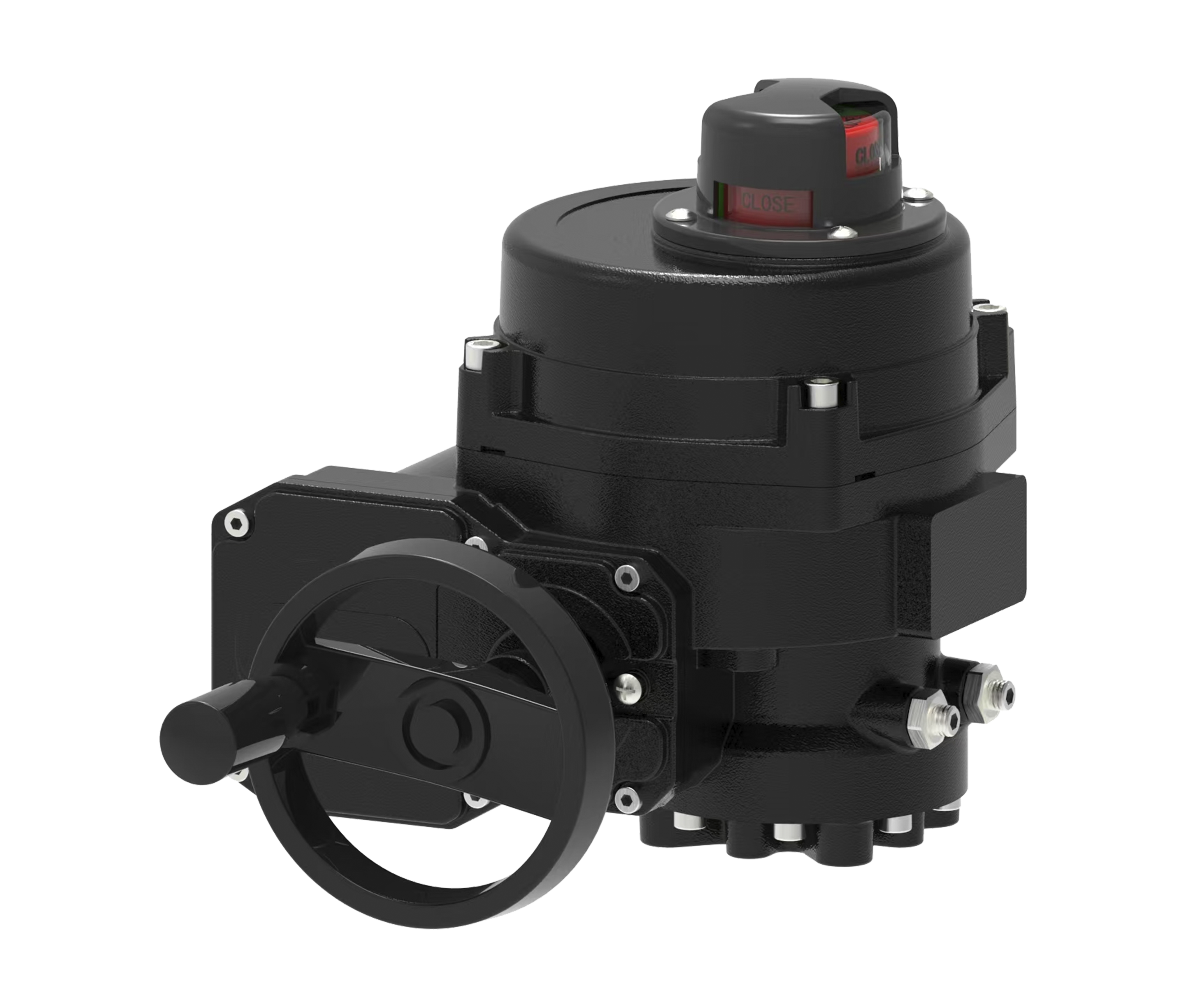

HEQ electric actuator

HEQ Series quarter-turn electric actuators provide output torque from 50 N·m to 10000 N·m. Adopting a modular design, the product supports abundant expandable functions. It is compatible with various valves including butterfly valves, ball valves and gate valves. Widely applied in petroleum, chemical, power, metallurgy, pharmaceutical, papermaking, energy, water treatment, marine, textile, food processing, building automation and other industries.

Product specifications and models

Model	Torque （Nm）	Torque （in-lb）	Adapter size （mm）	Adapter depth （mm）	Flange （ISO5211)	Time （sec/90°）	Manual operation	Weight （kg）	Weight （lb）
HEQ1-05	50	445	□11,□14,□17	31	F05/F07	20	Allen key (handwheel as optional)	4	8.8
HEQ1-08	80	710	□11,□14,□17	31	F05/F07	30	Allen key (handwheel as optional)	4	8.8
HEQ1-10	100	885	□11,□14,□17	31	F05/F07	30	Allen key (handwheel as optional)	4	8.8
HEQ2-15	150	1330	□14,□17	31	F05/F07	40	Allen key (handwheel as optional)	5	11.0
HEQ2-20	200	1770	□14,□17	31	F05/F07	40	Allen key (handwheel as optional)	5	11.0
HEQ3-25	250	2215	□14,□17or□22,□27	45	F07/F10orF10/F12	30	Allen key (handwheel as optional)	10	22.0
HEQ3-40	400	3540	□14,□17or□22,□27	45	F07/F10orF10/F12	30	Allen key (handwheel as optional)	11	24.3
HEQ3-60	600	5310	□14,□17or□22,□27	45	F07/F10orF10/F12	30	Allen key (handwheel as optional)	12	26.5
HEQ4-80	800	7085	□27or□36	45	F12orF10/F14	35	Allen key (handwheel as optional)	18	39.7
HEQ4-100	1000	8855	□27or□36	45	F12orF10/F14	54	Allen key (handwheel as optional)	19	41.9
HEQ4-120	1200	10625	□27or□36	45	F12orF10/F14	54	Allen key (handwheel as optional)	19.5	43.0
HEQ5-150	1500	13280	□36or□46	74	F14orF12/F16	30	Allen key (handwheel as optional)	28	61.7
HEQ5-200	2000	17705	□36or□46	74	F14orF12/F16	40	Allen key (handwheel as optional)	28	61.7
HEQ5-250	2500	22130	□36or□46	74	F14orF12/F16	50	Allen key (handwheel as optional)	28	61.7
HEQ5-300	3000	26555	□36or□46	74	F14orF12/F16	60	Allen key (handwheel as optional)	28	61.7
HEQ4JS-400	4000	35405	□36or□46	120	F14orF16/F25	140	Allen key (handwheel as optional)	52	114.6
HEQ5JS-600	6000	53105	□36or□46	120	F14orF16/F25	120	Allen key (handwheel as optional)	62	136.7
HEQ5JS-800	8000	70810	□36or□46	120	F14orF16/F25	160	Allen key (handwheel as optional)	62	136.7
HEQ5JS-1000	10000	88510	□36or□46	120	F14orF16/F25	120	Allen key (handwheel as optional)	62	136.7

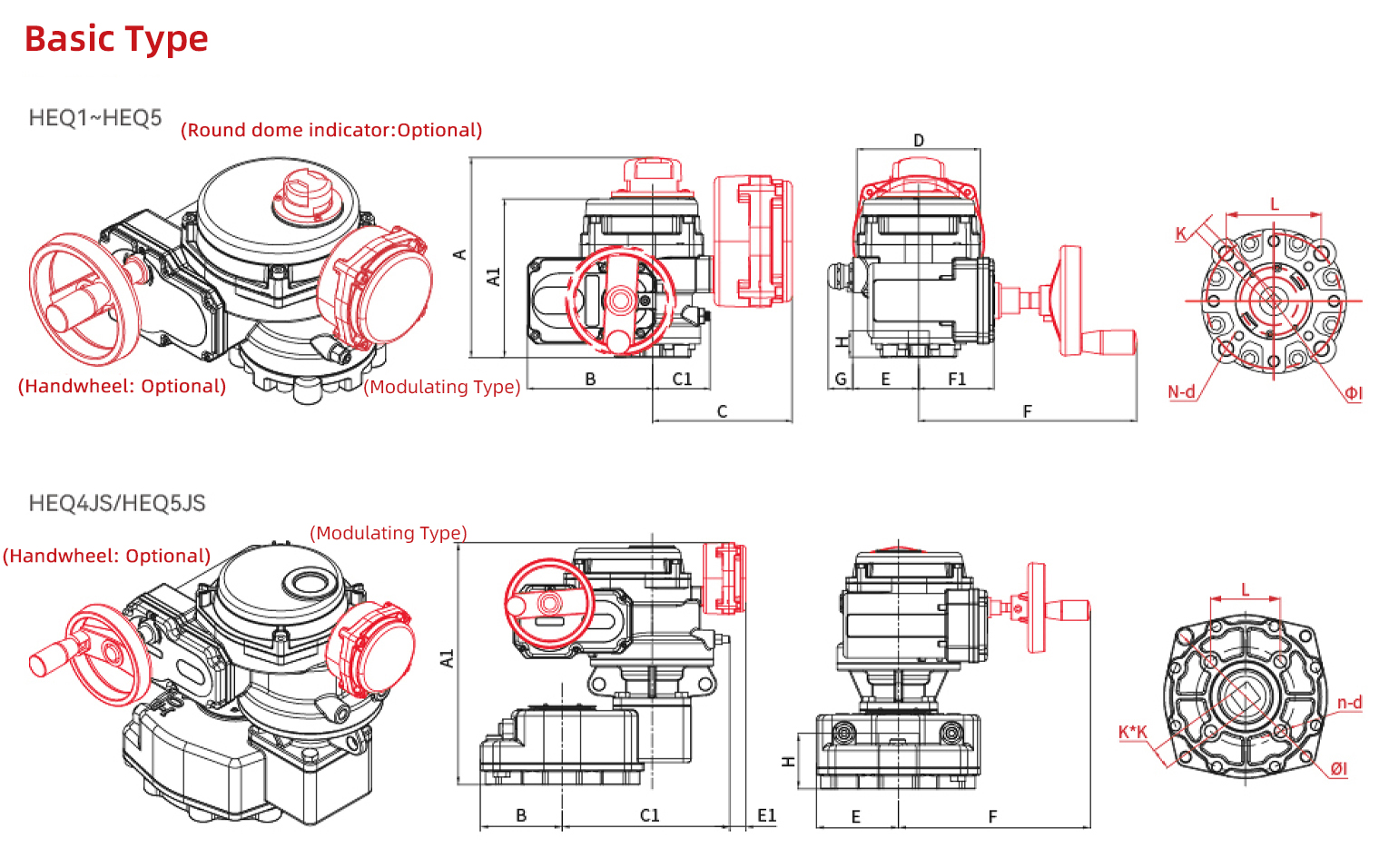

Product Dimension Drawing

Model	A	A1	B	C	D	E	E1	F	C1	F1	G	H	K	Φ1(ISO5211)	N-d	L(四方距离)
HEQ1-05	181	146	114	120	112	60	-	192	52	73	25	23	11*11	50(F05) 70(F07)	4-M6 4-M8	35.4 49.5
HEQ1-08												30	1414 1717
HEQ1-10
HEQ2-15	193	158	131	120	130	69	-	203	52	82	25	30	1414 1717	50(F05) 70(F07)	4-M6 4-M8	35.4 49.5
HEQ2-20
HEQ3-25	215	180	173	131	170	76	-	237	84	120	25	45	1414 1717 2222 2717	70(F07) 102(F10) or 102(F10) 125(F12)	4-M8/4-M10 or 4-M10/4-M16	49.5/72.1 72.1/88.4
HEQ3-40
HEQ3-60
HEQ4-80	240	205	200	133	185	80	-	281	90	129	25	50	2727 3636	125(F12) or 102(F10) 140(F14)	4-M12 or 4-M10/4-M16	88.4 or 72.1/99
HEQ4-100
HEQ4-120
HEQ5-150	266	231	232	150	212	94	-	313	124	150	25	74	3636 4646	140(F14) or 125(F12) 165(F16)	4-M16 or 4-M12/4-M20	99 or 88.4/116.7
HEQ5-200
HEQ5-250
HEQ5-300
HEQ4JS400	-	395	137	-	-	137	50	281	240	-	-	120	3636 4646	140(F14) or 165(F16)254(F25)	4-M16 or 4-M20/ 8-M16	99 or 116.7/---
HEQ5JS600	-	405	137	-	-	137	26	313	280	-	-	120
HEQ5JS800
HEQ5JS1000

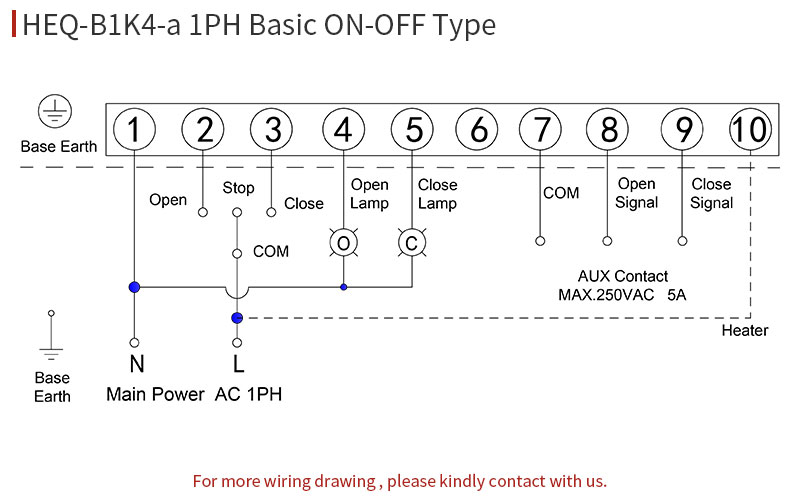

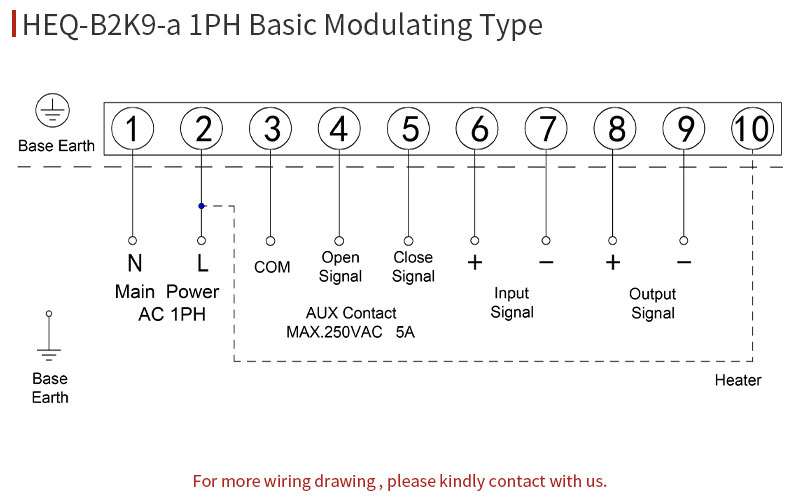

line diagram
