understanding electric three eccentric butterfly valves: design, function, and applications
Release time:2024-12-20 00:27:53

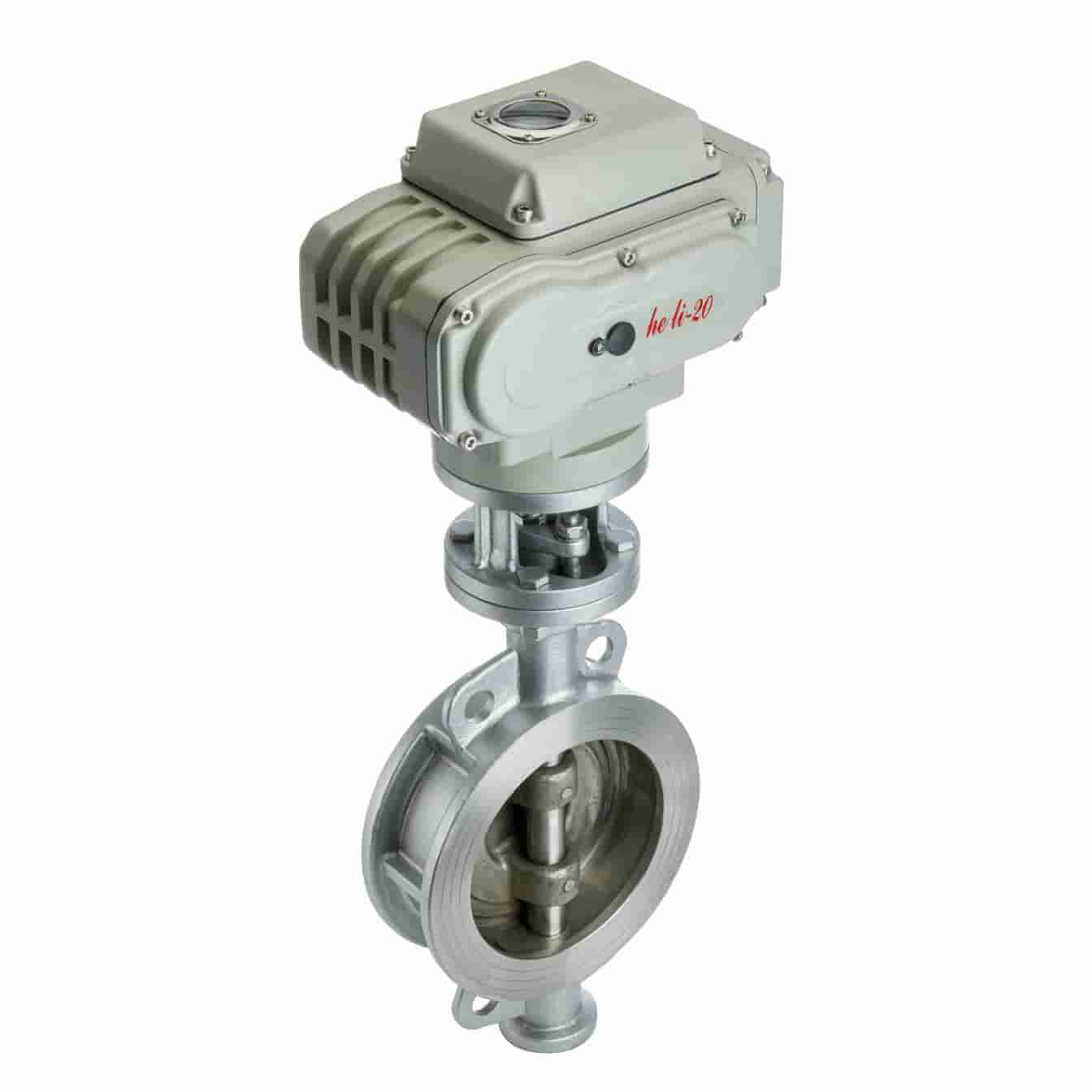

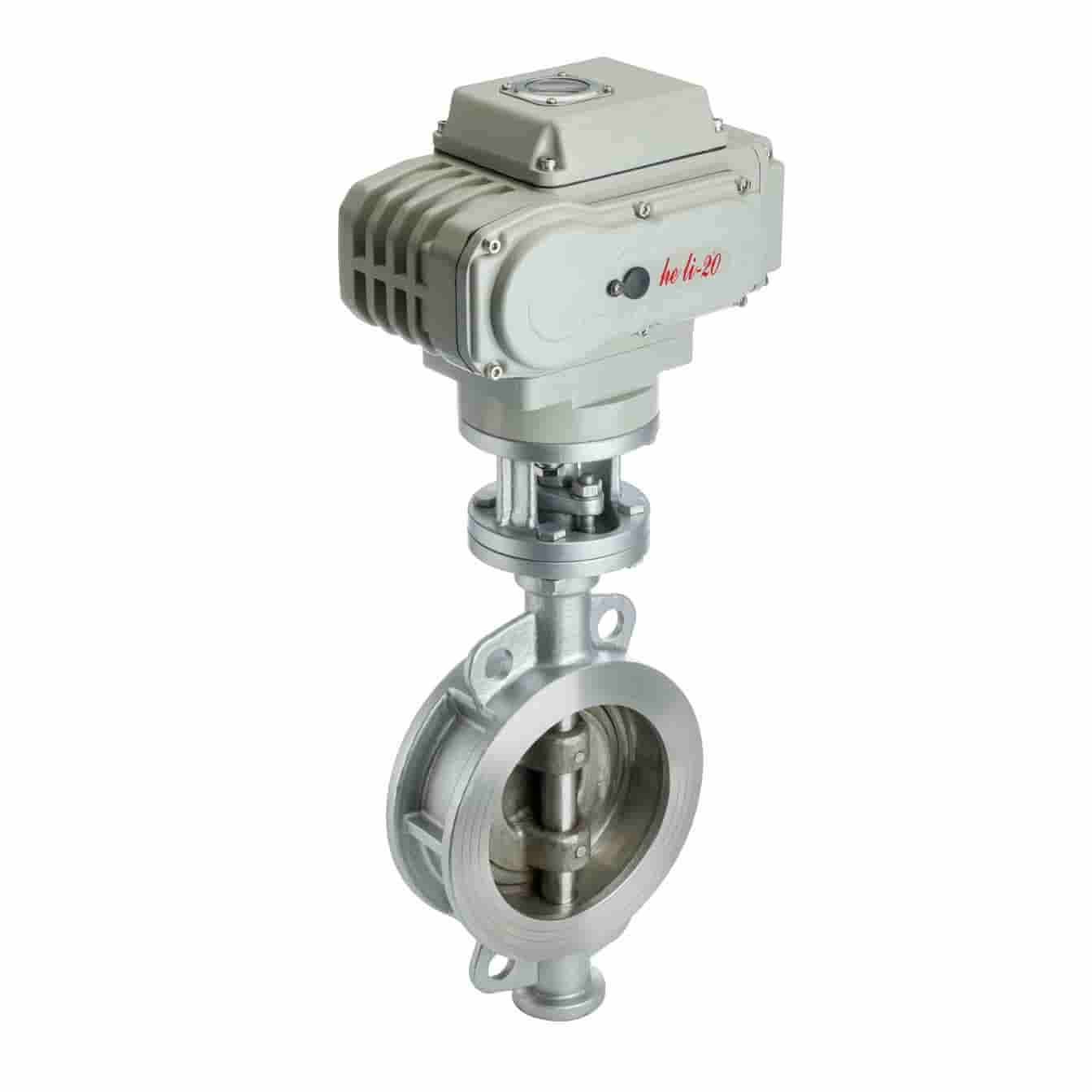

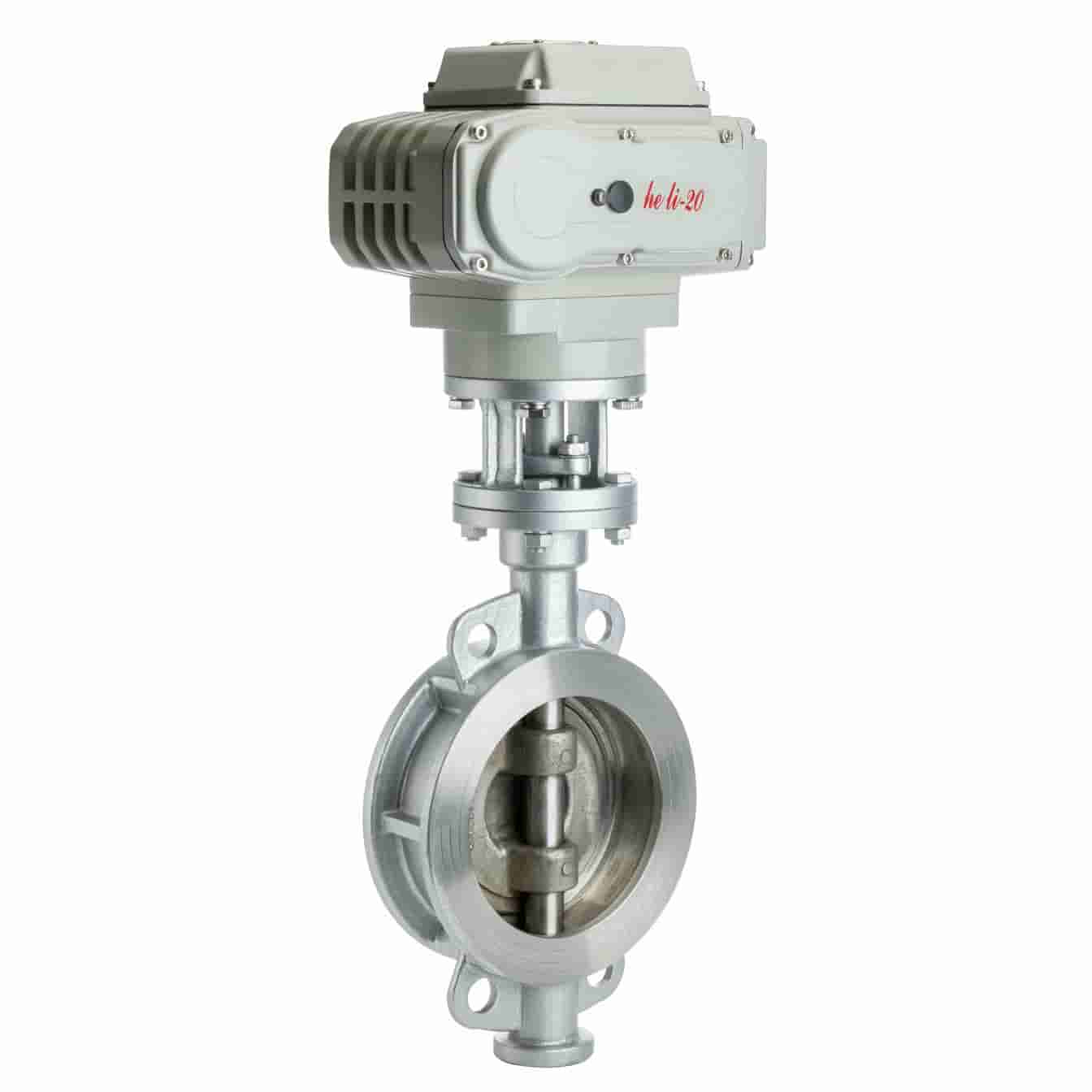

Electric three eccentric butterfly valves are advanced control devices widely used in various industrial applications. These valves are known for their reliability, efficiency, and unique design features, making them suitable for a range of fluid control scenarios. This article delves into the fundamental aspects of electric three eccentric butterfly valves, including their design, operational principles, advantages, and common applications.
Design and Structure
Electric three eccentric butterfly valves feature a distinct design that sets them apart from traditional butterfly valves. The "three eccentric" design refers to the valve's shaft and disc configuration. Unlike conventional butterfly valves, where the disc is centered on the shaft, three eccentric valves have multiple axes of rotation. This means that the shaft is positioned eccentrically in three different ways: First Eccentricity: The disc rotates around its own center.
Second Eccentricity: The disc is offset from the valve body center.
