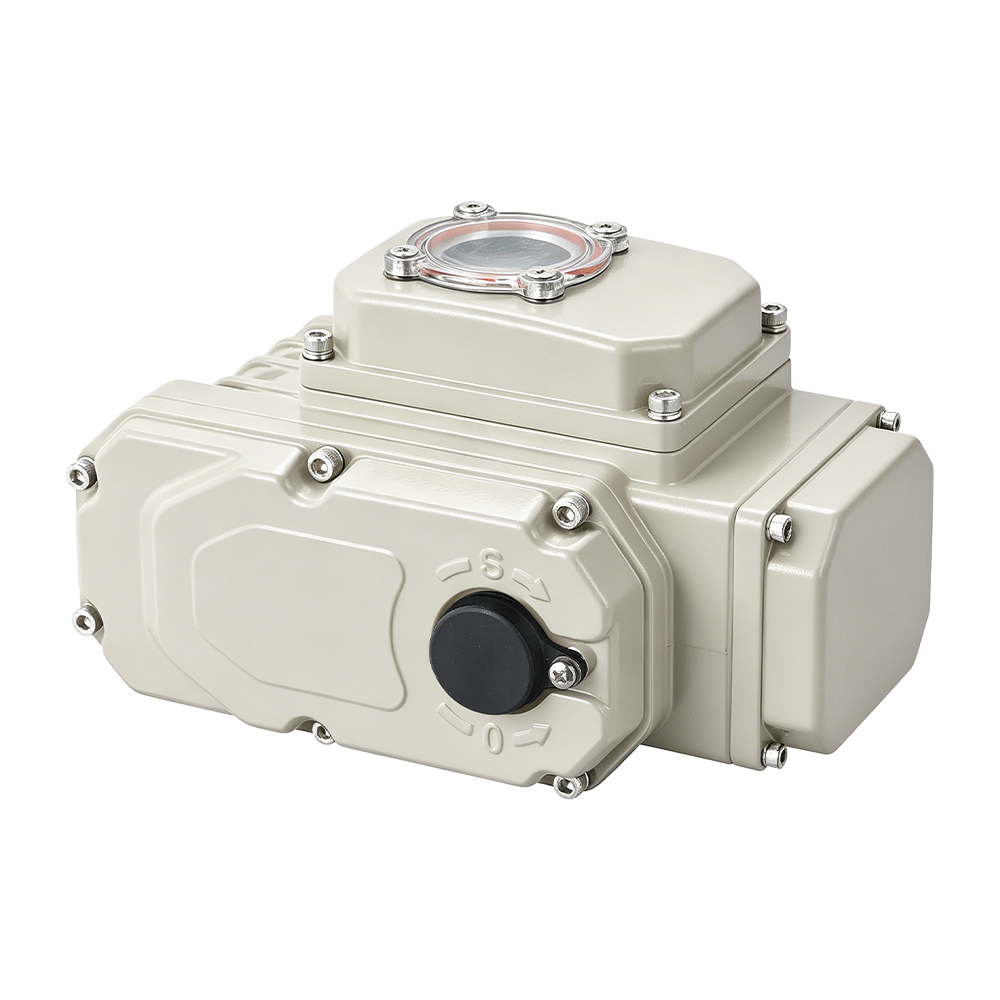

HL electric actuator
HL Series Electric Actuators adopt worm and worm gear transmission mechanism, featuring compact structure and strong self-locking performance, along with excellent weather resistance and shock resistance. Equipped with dual electrical and mechanical limit stops to prevent overtravel. Mounting dimensions comply with ISO 5211 standard. Suitable for quarter-turn valves such as butterfly valves, ball valves, air dampers and plug valves, they are widely applied in building services, public construction, urban pipeline networks and other systems.
Product specifications and models
Model | Torque （Nm） | Torque （in-lb） | Adapter size （mm） | Adapter depth （mm） | Flange （ISO5211） | Time （sec/90°） | Manual operation | Weight （kg） | Weight （lb） |
| 50 | 445 | □9,□11,□14 | 15，22，26 | F03/F05/F07 | 30 | Allen key (handwheel as optional) | 3 | 6.6 |
| 100 | 885 | □14,□17 | 29，35 | F05/F07 | 20 | Allen key (handwheel as optional) | 4.5 | 9.9 |
| 160 | 1420 | □14,□17 | 29，35 | F05/F07 | 30 | Allen key (handwheel as optional) | 4.5 | 9.9 |
| 250 | 2220 | □17,□22,□27 | 35，45 | F07/F10/F12 | 30 | Allen key (handwheel as optional) | 9.8 | 21.6 |
| 400 | 3540 | □17,□22,□27 | 35，45 | F07/F10/F12 | 30 | Allen key (handwheel as optional) | 9.8 | 21.6 |
| 600 | 5310 | □17,□22,□27 | 35，45 | F07/F10/F12 | 30 | Allen key (handwheel as optional) | 9.8 | 21.6 |
| 1000 | 8855 | □22,□27,□36 | 47or50 | F10/F12orF14 | 30 | Allen key (handwheel as optional) | 14.7 | 32.4 |
| 1600 | 14165 | □22,□27,□36 | 47or50 | F10/F12orF14 | 50 | Allen key (handwheel as optional) | 14.7 | 32.4 |
| 2000 | 17705 | □22,□27,□36 | 47or50 | F10/F12orF14 | 60 | Allen key (handwheel as optional) | 14.7 | 32.4 |
| 2500 | 22130 | □27,□36 | 61 | F12/16or14 | 50 | Allen key (handwheel as optional) | 25.1 | 55.3 |
| 3000 | 26555 | □27,□36 | 61 | F12/16or14 | 60 | Allen key (handwheel as optional) | 25.1 | 55.3 |
| 3500 | 30978 | □36,□46 | 74 | F12/16orF14 | 70 | Allen key (handwheel as optional) | 26.5 | 58.4 |
| 4000 | 35405 | □36,□46 | 74 | F12/16orF14 | 80 | Allen key (handwheel as optional) | 26.5 | 58.4 |
6000 | 53105 | □36,□46 | 75 | F14orF16/F25 | 120 | Allen key (handwheel as optional) | 60.5 | 133.4 | |
8000 | 70806 | □36,□46 | 75 | F14orF16/F25 | 160 | Allen key (handwheel as optional) | 60.5 | 133.4 | |
10000 | 88508 | □36,□46 | 75 | F14orF16/F25 | 200 | Allen key (handwheel as optional) | 60.5 | 133.4 |

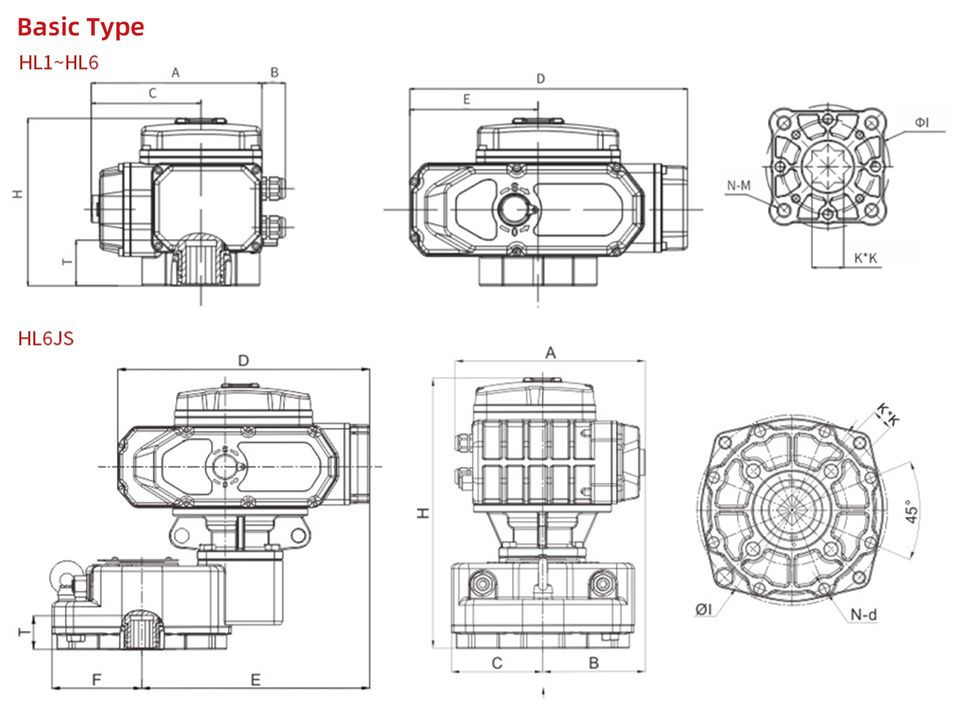

Product Dimension Drawing
Model | A | B | C | D | E | H | T | K*K | ΦI(ISO5211) | N-M |
HL1-05 | 115 | 26 | 71 | 180 | 87 | 121 | 15 22 26 | 9*9 | 36(F03) | 4-M5 |
HL2-10 | 125 | 26 | 83 | 220 | 105 | 139 | 29 | 14*14 | 50(F05) | 4-M6 |
HL2-16 | 35 | 17*17 | ||||||||
HL3-25 | 168 | 26 | 104 | 294 | 140 | 159 | 35 | 17*17 | 70(F07) | 4-M8 |
HL3-40 | 45 | 22*22 | ||||||||
HL3-60 | ||||||||||
HL4-100 | 193 | 26 | 124 | 315 | 145 | 195 | 47 | 22*22 | 102(F10) | 4-M10 |
HL4-160 | 50 | 27*27 | ||||||||
HL4-200 | ||||||||||
HL5-250 | 242 | 26 | 148 | 341 | 150 | 266 | 61 | 27*27 | 125(F12) or 140(F14) | 4-M12 |
HL5-300 | ||||||||||
HL6-250 | 258 | 26 | 154 | 385 | 188 | 232 | 74 | 36*36 | 125(F12) 165(F16) | 4-M12 or 4-M16 |
HL6-400 |
Model | A | B | C | D | E | H | F | T | K*K | ΦI(ISO5211) | N-M |
HL6JS-600 | 285 | 155 | 137 | 385 | 350 | 408 | 137 | 75 | 36*36 46*46 | 140(F14) | 4-M16 |
HL6JS-800 | |||||||||||
HL6JS-1000 |

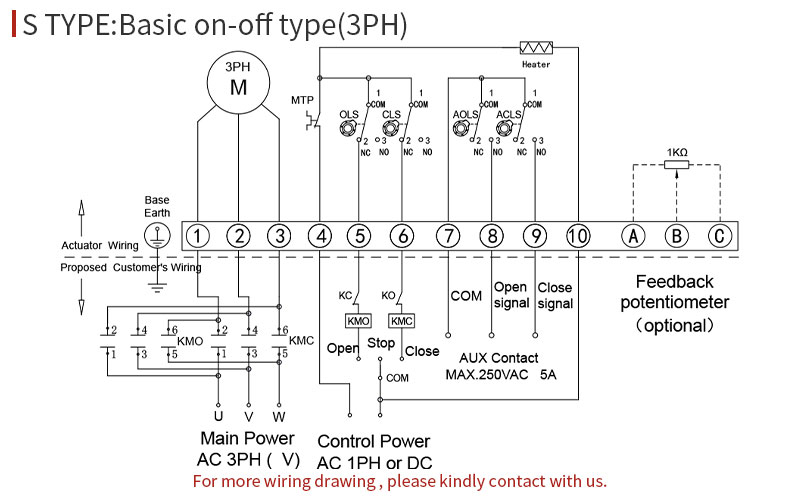

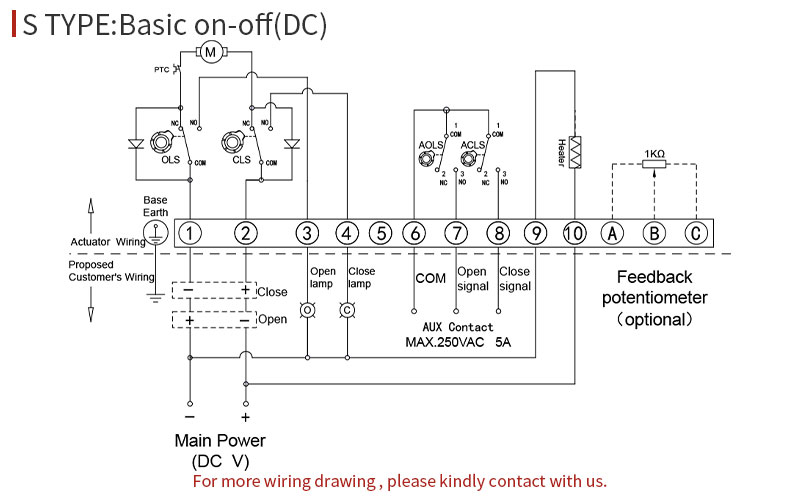

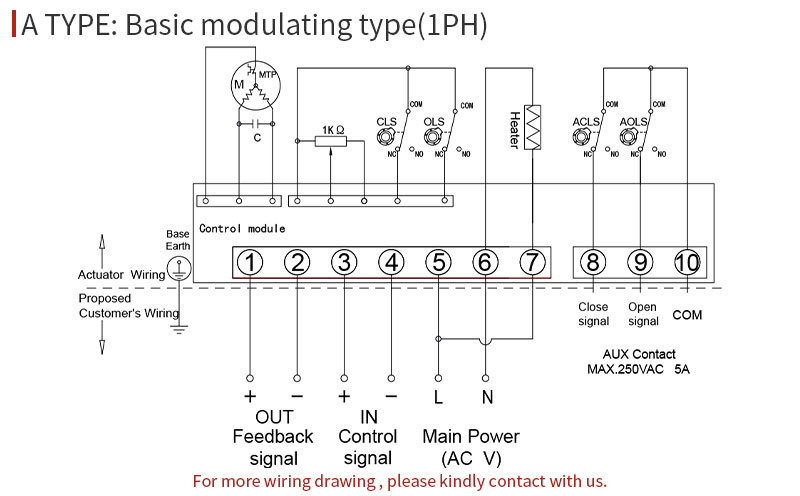

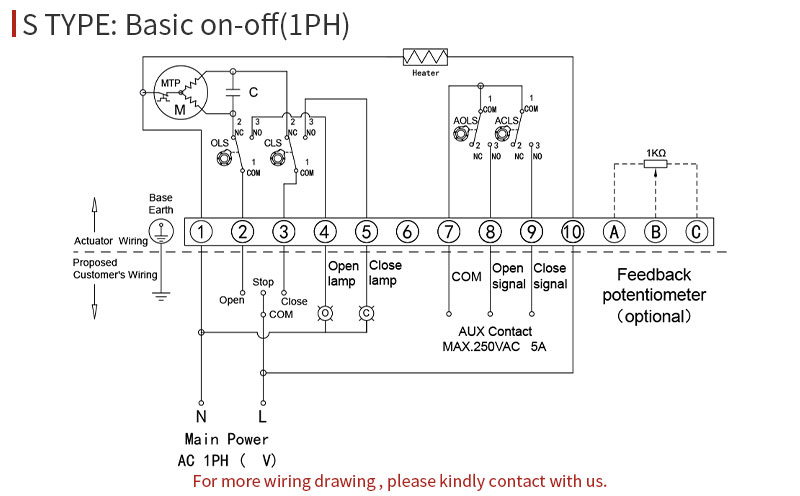

line diagram
