comprehensive overview of explosion-proof electric three eccentric butterfly valve： design, features, and applications
Release time:2025-11-11 07:56:30

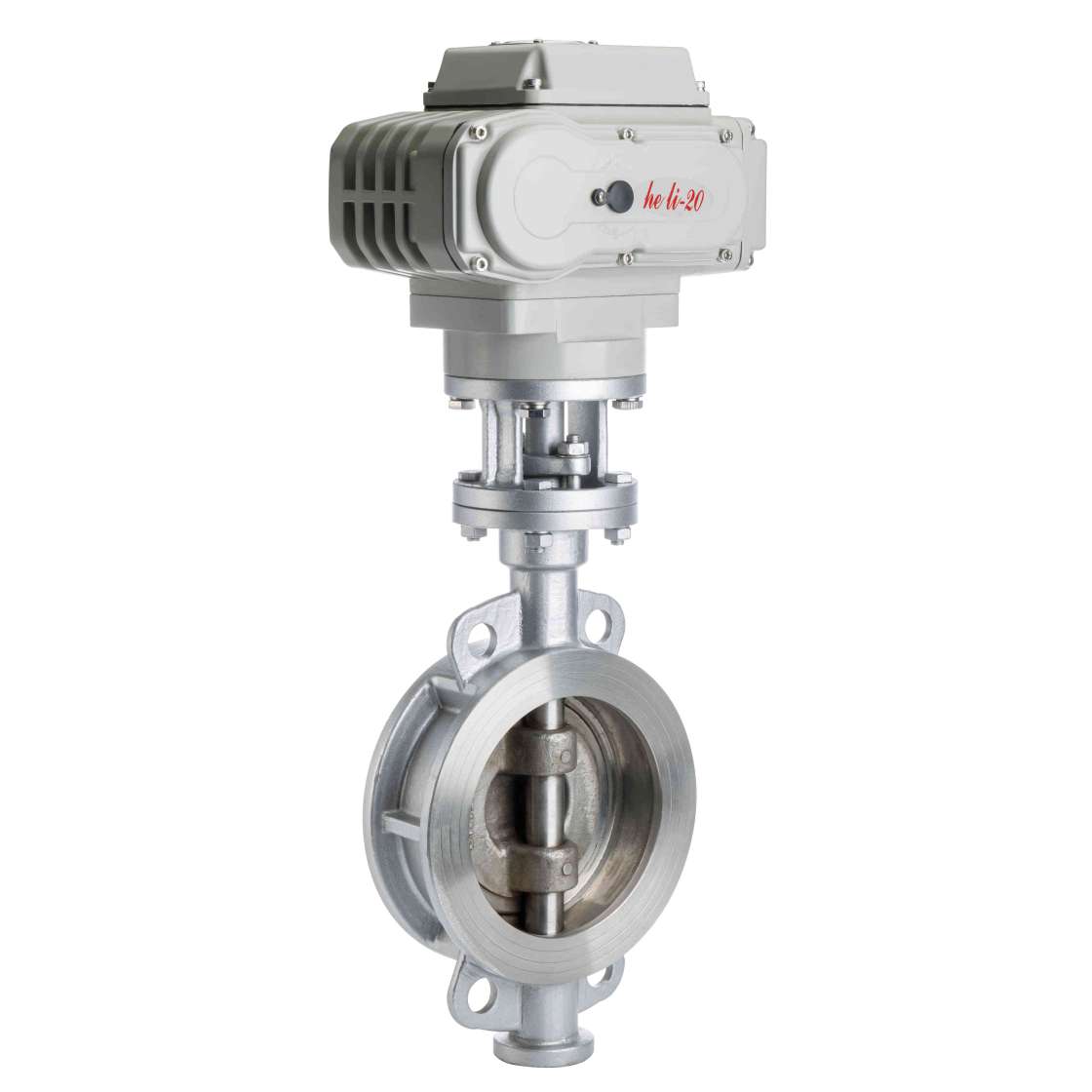

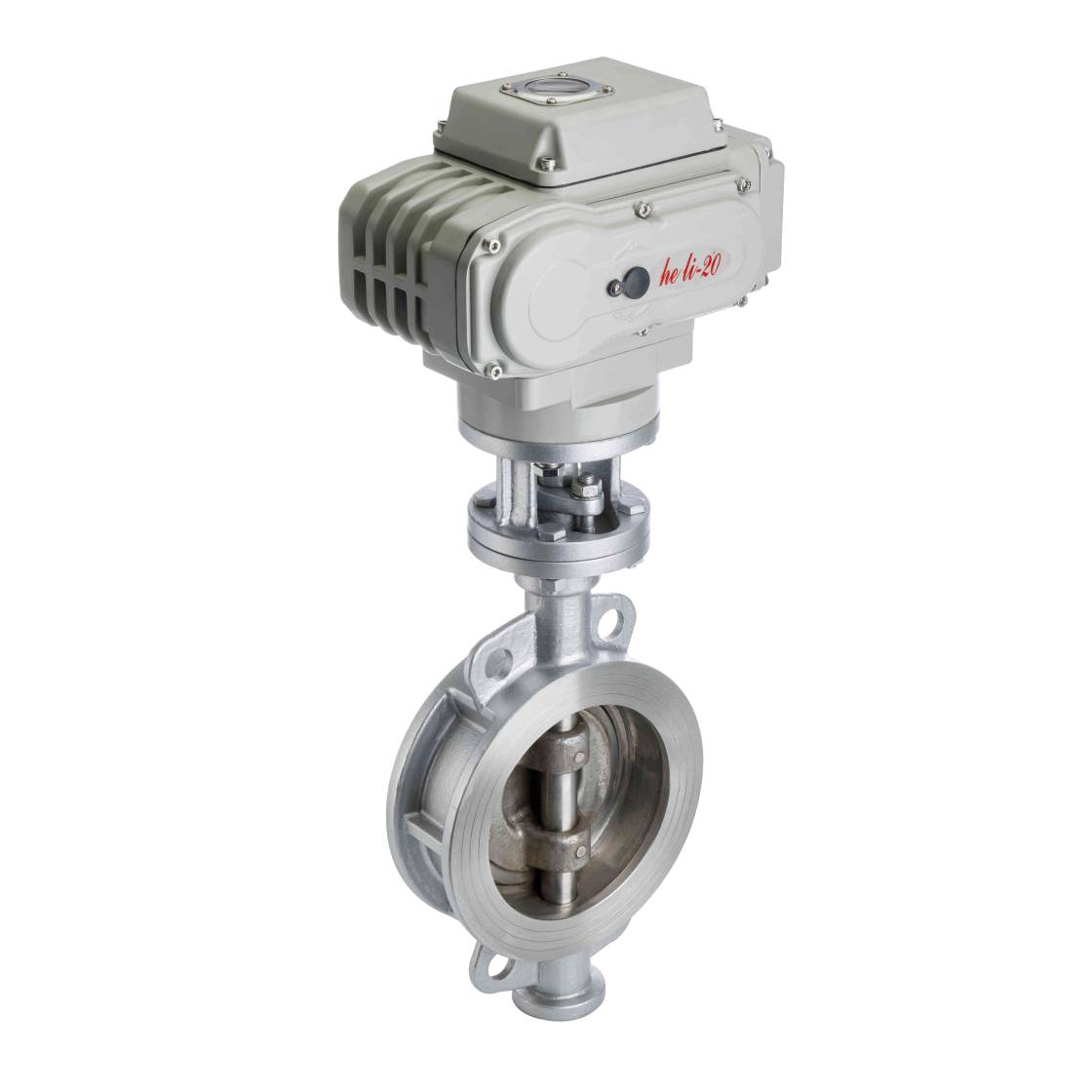

The Explosion-proof Electric Three Eccentric Butterfly Valve is a highly specialized component used in industries where safety, precision, and durability are critical, especially in hazardous environments such as chemical processing, oil and gas, and power generation. This valve combines the benefits of electric drive technology with the advanced three-eccentric design, offering superior performance in applications where explosion risk is a concern. In this article, we will explore the design, functionality, key features, and typical applications of the Explosion-proof Electric Three Eccentric Butterfly Valve.
Design and Working Principle
The three-eccentric design refers to the offset geometry of the valve disc, seat, and shaft. In traditional butterfly valves, the valve disc is mounted centrally and rotates within the valve seat. However, the three-eccentric design introduces three unique offsets： one between the valve stem and the seat, a second between the seat and the axis of the valve disc, and a third between the valve seat and the centerline of the valve body. These offsets contribute to a smoother operation, eliminating friction between the disc and the seat during opening and closing.
