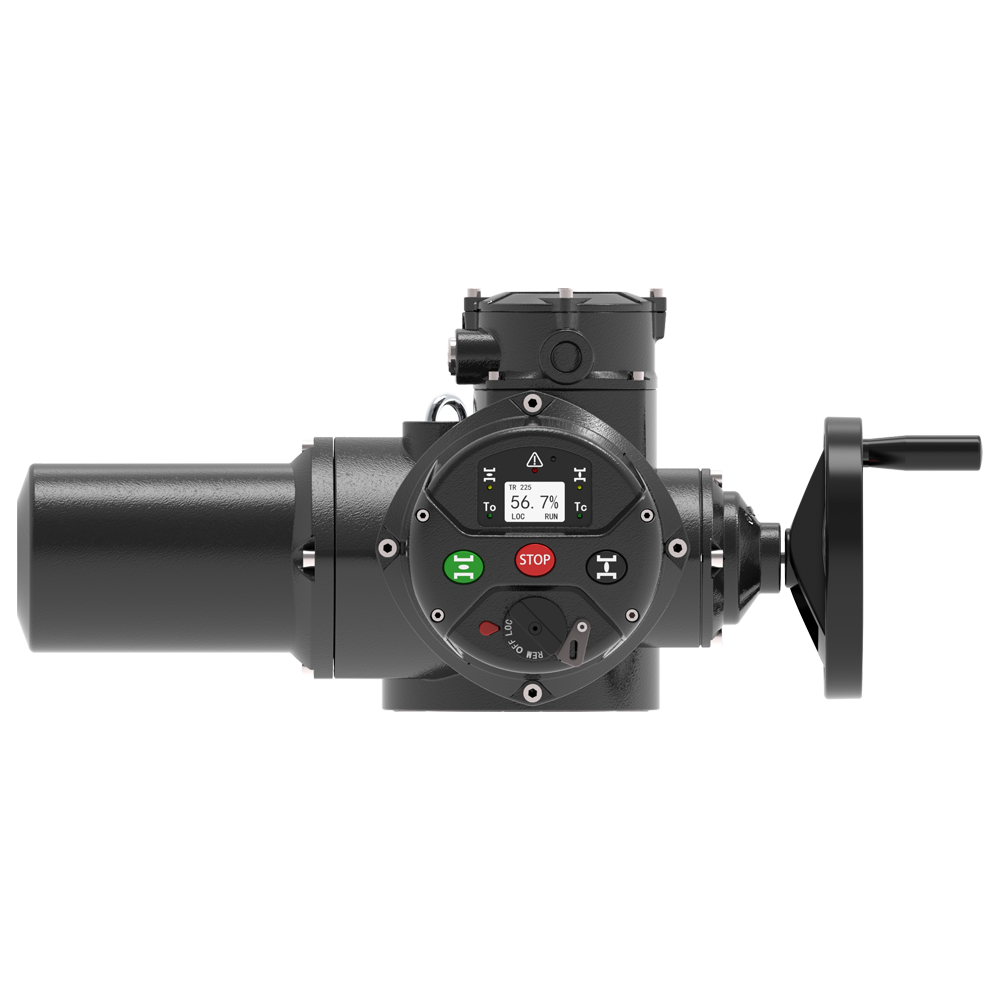

HEM multi turn electric actuator

The HEM Series can be manufactured in various models upon customer requirements, including basic, intelligent, fieldbus and split intelligent types. Safe, stable and dependable, they meet diverse application scenarios across all industries.

HEM Series multi-turn electric actuators are compatible not only with linear-stroke valves such as regulating valves, exhaust valves and globe valves, but also with quarter-turn valves. Fitted with a half-turn worm and worm gear reduction box, they can be matched with butterfly valves, ball valves and plug valves.

The HEM Series delivers a direct output torque ranging from 100 N·m to 3000 N·m and an output speed from 18 rpm to 144 rpm. By adopting different rotational speeds and gear ratios, matched with dedicated electric worm gear boxes, the actuators can satisfy higher torque demands.

Product specifications and models

Basic Parameters of 3-phase 380VAC On/Off Electric Actuator

Series	Speed	Nominal torque	Output connection standard		Manual operation	Weight（kg)		Weight（lb)
Series	r/min	N·m	JB2920	ISO5210	Manual operation	Basic Type	Intelligent Type	Basic Type	Intelligent Type
HEM10	18	100	JB2	F10	Handwheel	26	26	80.7	80.7
	24	100
	36	80
	48	70
	72	60
	96	50
	144	40
HEM15	18	150
	24	150
	36	100
	48	90
	72	80
	96	60
	144	50
HEM20	18	200	JB3	F14	Handwheel	42	42	340.4	340.4
	24	200
	36	190
	48	180
	72	120
	96	80
	144	70
HEM30	18	300
	24	300
	36	280
	48	250
	72	150
	96	100
	144	80
HEM40	18	400
	24	400
	36	350
	48	300
	72	200
	96	150
	144	100
HEM50	18	500	JB4	F16	Handwheel	56	56	453.8	453.8
	24	500
	36	450
	48	400
	72	350
	96	300
	144	200
HEM60	18	600
	24	600
	36	550
	48	500
	72	400
	96	320
	144	220
HEM80	18	800
	24	800
	36	750
	48	650
	72	500
	96	400
	144	250
HEM90	18	900
	24	900
	36	800
	48	700
	72	600
	96	450
	144	300
HEM100	18	1000	JB5	F25	Handwheel	125	145	1013.0	1175.1
	24	1000
	36	850
	48	730
	72	650
	96	550
	144	420
HEM150	18	1500
	24	1500
	36	1300
	48	1000
	72	900
	96	750
	144	650
HEM200	18	2000	JB7	F30	Handwheel	125	145	1013.0	1175.1
	24	2000
	36	1700
	48	1400
	72	1000
	96	850
	144	750
HEM300	18	3000
	24	3000
	36	2000
	48	1800
	72	1200
	96	1000
	144	850

Single-Phase 220VAC On/Off Actuator Basic Specifications

Series	Speed	Nominal torque	Output connection standard		Manual operation	Weight（kgs)		Weight（lb)
	r/min	N·m	JB2920	ISO5210		Basic Type	Intelligent Type	Basic Type	Intelligent Type
HEM10	18	70	JB2	F10	Handwheel	26	26	210.7	210.7
	24	60
	36	45
	48	40
	72	30
HEM40	18	190	JB3	F14	Handwheel	42	42	340.4	340.4
	24	160
	36	110
	48	80
	72	55
HEM60	18	440	JB4	F16	Handwheel	56	56	453.8	453.8
	24	350
	36	250
	48	170
	72	130

Single-Phase 220VAC Modulating Actuator Basic Specifications

Series	Speed	Nominal torque	Output connection standard		Manual operation	Weight（kgs)		Weight（lb)
	r/min	N·m	JB2920	ISO5210		Basic Type	Intelligent Type	Basic Type	Intelligent Type
HEM10	18	60	JB2	F10	Handwheel	26	26	210.7	210.7
	24	45
	36	40
	48	30
	72	20
HEM40	18	160	JB3	F14	Handwheel	42	42	340.4	340.4
	24	150
	36	100
	48	75
	72	50
HEM60	18	300	JB4	F16	Handwheel	56	56	453.8	453.8
	24	230
	36	150
	48	120
	72	80

Basic Parameters of DC24V Electric Actuator

Series	Speed	Nominal torque	Output connection standard		Manual operation	Weight（kgs)		Weight（lb)
	r/min	N·m	JB2920标准	ISO5210标准		Basic Type	Intelligent Type	Basic Type	Intelligent Type
HEM10-24	24	50	JB2	F10	Handwheel	26	26	210.7	210.7
HEM10-24	24	70
HEM10-24	24	80
HEM10-24	24	100
HEM15-24	24	110	JB2	F10	Handwheel	26	26	210.7	210.7
HEM40-24	24	110	JB3	F14	Handwheel	42	42	340.4	340.4
HEM40-24	24	120
HEM40-24	24	130
HEM40-24	24	150

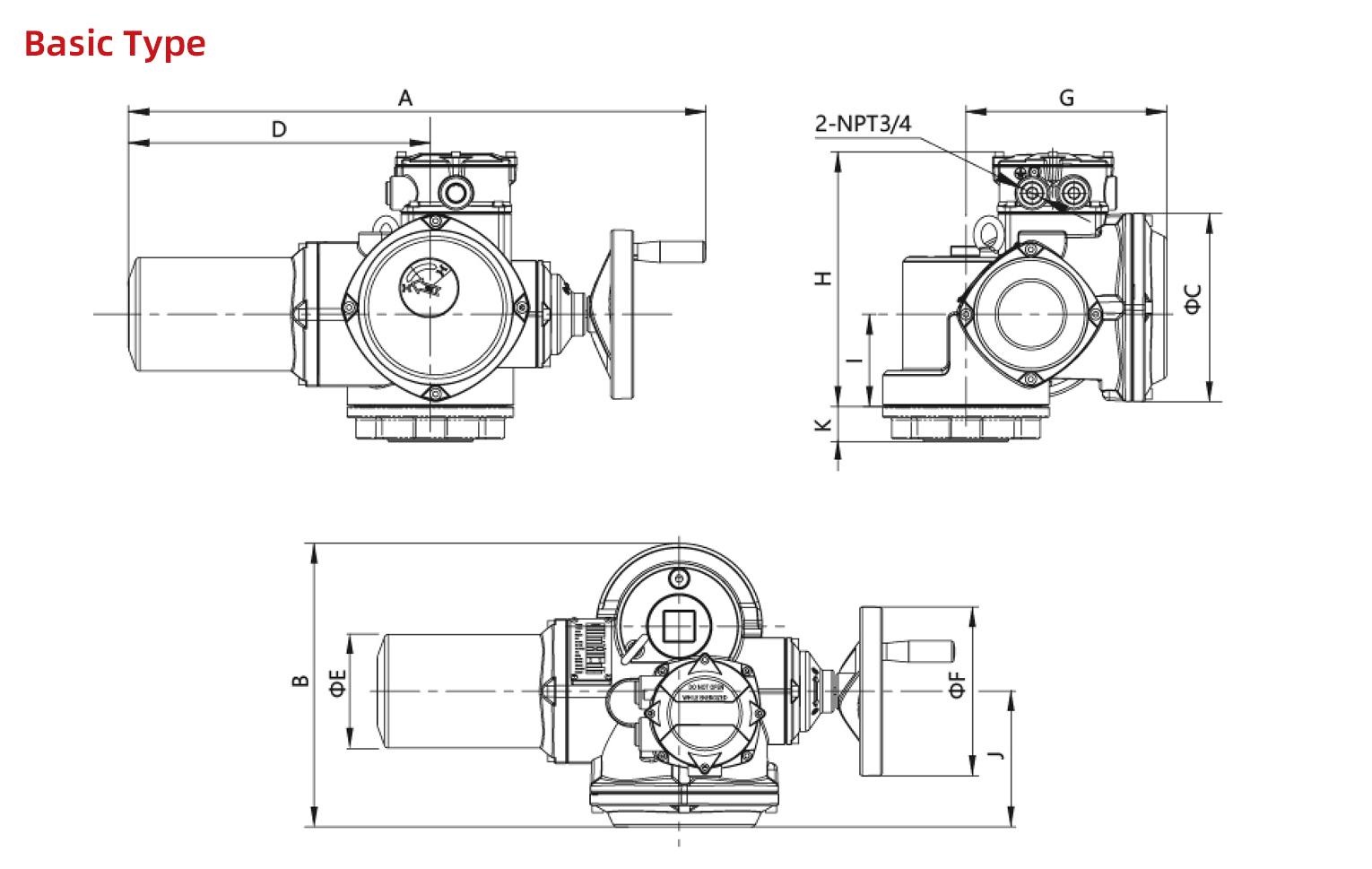

Product Dimension Drawing

Model	A	B	ΦC	D	ΦE	ΦF	G	H	I	J	K		Weight (kg)
Model	A	B	ΦC	D	ΦE	ΦF	G	H	I	J	Z-type Flange	T-type Flange	Weight (kg)
HEM10	569	294	222	293	100	125	219	290	108	160	0	47	26
HEM15	569	294	222	293	100	125	219	290	108	160	0	47	26
HEM20	677	332	222	354	135	200	235	297	108	160	41	63	42
HEM30	677	332	222	354	135	200	235	297	108	160	41	63	42
HEM40	677	332	222	354	135	200	235	297	108	160	41	63	42
HEM50	745	387	222	409	160	200	261	305	114	165	41	67	56
HEM60	745	387	222	409	160	200	261	305	114	165	41	67	56
HEM80	745	387	222	409	160	200	261	305	114	165	41	67	56
HEM90	745	387	222	409	160	200	261	305	114	165	41	67	56
HEM100	780	445	222	519	226	247	287	355	165	165	0	125	125
HEM150	780	445	222	519	226	247	287	355	165	165	0	125	125
HEM200	780	445	222	519	226	247	287	355	165	165	0	125	125
HEM300	780	445	222	519	226	247	287	355	165	165	0	125	125

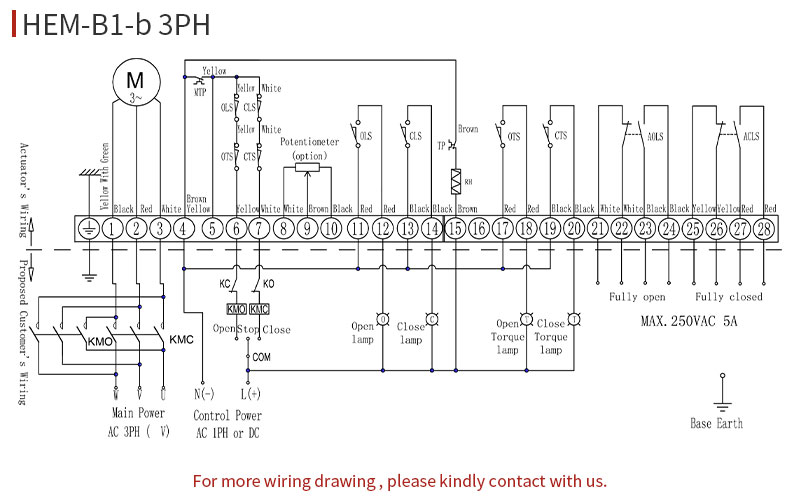

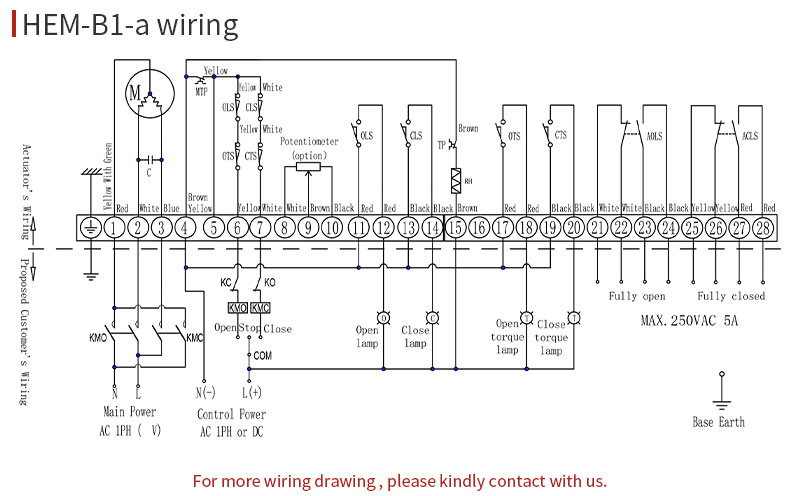

line diagram
